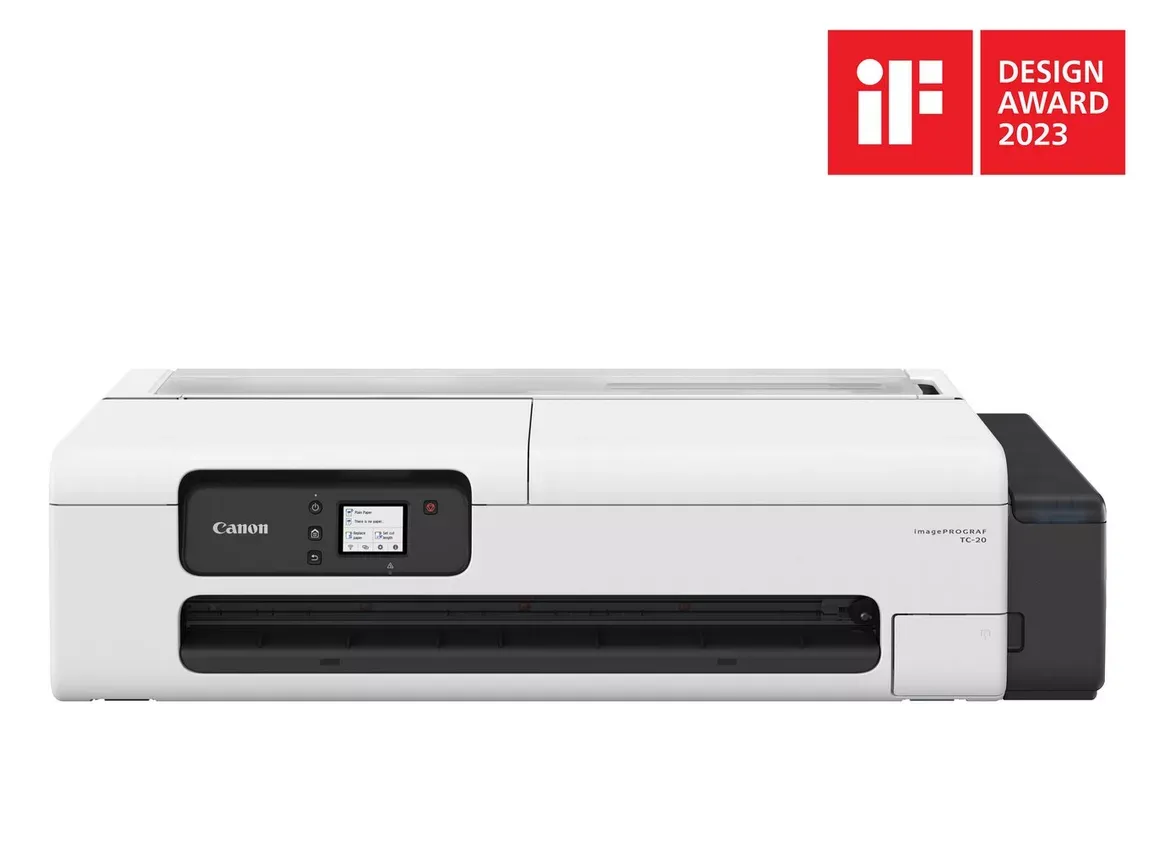

Canon imagePROGRAF TC-20 Wide Format Printer

R22300,00 - R25645,00 inc.VAT

  • Size – 24″ A1  610mm
  • Media Width – Roll/Cut – 203.2mm – 610mm
  • Ink Capacity – 70ml
  • Printer Type – CAD & Technical, Signage & Poster
  • Share:

About The Canon TC-20

With its compact design, the Canon imagePROGRAF TC-20 is the ideal choice for modern working as it can easily fit in small spaces, without compromising on print quality. It also comes with job submission software which is compatible with other imagePROGRAF models and supports hybrid working, making printing easy when transitioning between the office and home. Its convenient design provides easy user maintenance, and it can deliver detailed drawings for AEC, educational and hospitality industries – helping businesses become future-proofed with agile and responsive solutions.

Large format printing in small spaces

The Canon TC-20s space-saving design is ideal for home workers with large format printing needs. Its super slim compact body can be placed on a desk or shelf, and its design allows for all print-related operations, such as loading paper and ink refilling, to be easily accessed at the front. For users unfamiliar with large format printers, the roll of paper is designed to be easy to install. Unlike many other large format printers, the roll holder is shaftless which makes it easy to install the roll paper, especially in small spaces. Users can very simply insert and lock the roll holders on two sides.

Using the free PosterArtist web application, users can create posters and flyers with ease. This is ideal for hospitality settings such as restaurants and retail stores where they might produce posters and menus and are often very short on space. PosterArtist offers a large variety of templates that enable users to create materials to suit their needs, with changeable text and images, making it easy for people unfamiliar with design to create original designs.

Superior output every time for A1+ to A4 paper sizes

Like the higher-end models in the Canon imagePROGRAF series, it comes with free software, Direct Print Plus, which allows users to check the layout of multiple files in different file formats, such as PDF, JPEG and TIFF. Providing previews on screen, designs can be printed directly without launching each dedicated application. By simply selecting the paper source within Direct Print Plus or an alternative printer driver, users can switch between roll paper and cut sheets and easily print output in a variety of sizes including A4, A3 and A1+. The standard built-in Auto Sheet Feeder (ASF) can also continuously print A3 or A4 size paper.

Monitor consumables with smartphone

The Canon imagePROGRAF TC-20 is equipped with a large ink tank that enables continuous printing and uses 70ml ink bottles for all four colours (BK/C/M/Y) to reduce the frequency and effort of refilling ink. Using the Canon Print Inkjet/SELPHY [2] app, users can check the remaining amount of roll paper and ink on a smartphone, enabling quick responses to any required paper change or ink refill, as well as the ability to update firmware to keep the printer up to date.

The ink bottles have been designed to prevent errors when refilling the ink thanks to a different shaped bottle for each colour and the relevant colour being displayed at the inlet of each bottle. In addition, the ink bottles have been designed for easy installation simply inserting them into the tank inlet will start injecting the ink, and when a certain level is reached, the injection will automatically stop. There is also a mechanism that helps prevent ink spills, allowing users to refill ink without any mishaps.

By using the “PIXMA Cloud Link” feature from this app, printing documents filed or stored in the cloud is also possible. For example, a drawing created at a design office and stored in the cloud can be printed from a smartphone at a temporary construction site and shared with field personnel.

Designed with sustainability in mind

The Canon TC-20 helps contribute to sustainability goals by offering lower power consumption 28W or less when in operation. It also includes reduced packaging materials as well as easy-to-recycle ink bottles. Due to its environmental benefits, including the fact that it uses recycled plastic within its design, the imagePROGRAF TC-20 has also been rated as a Gold product, the highest level of registration in the field of imaging equipment products, under the U.S. EPEAT environmental assessment system.



Hard Disk 500GB
Ink Type Pigment Inks – Black, Cyan, Magenta, Yellow
Software Included Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/ Mac®, Media Configuration Tool, Canon PRINT Inkjet Selphy, PIXMA Cloud Link, PosterArtist Web
Media Feed and Output Roll Paper – Front-loading, Front Output. Cut Sheet – Front-loading, Front Output
Media Thickness 0.08 mm – 0.28 mm
Media Feed Capacity Roll Paper – One Roll. Cut Sheet – One Sheet
Discontinued No
Product Type Wide Format Printer
Printer Type CAD & Technical, Signage & Poster
Maximum Printable Length Roll paper – 4m. Cut sheet – 432mm
Paper Size A1 (24″)
Colour Colour & Black & White
Interface Connection USB, WiFi, WiFI
Print Resolution 2400 x 1200 dpi
Standard Memory 1 GB
Operating Systems Supported Mac, Mac
Printer Languages SG Raster
Print Technology Pigment black and Dye colour Inks
Ink Capacity 70ml
Media Size Up to 24″ / 610mm
Minimum Printable Length 203.2mm
Maximum Media Roll Diameter 110mm
Dimensions 968 (w) x 545 (d) x 245 (h) mm
Weight Approximately 32kg
Media Width Roll/Cut – 203.2mm – 610mm
Environmental Compliance EPEAT GOLD
